Technical Requirements for H3000

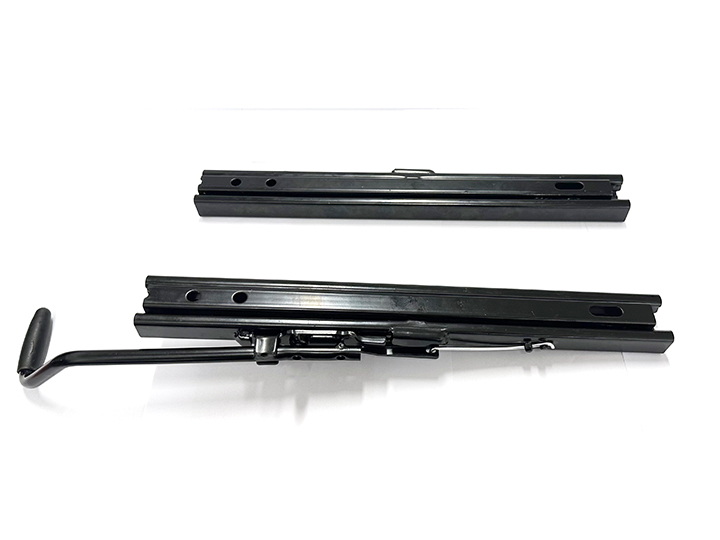

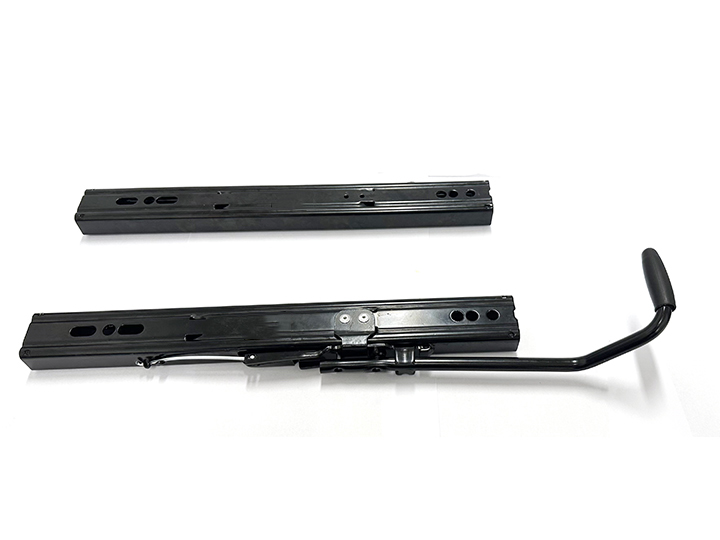

1.The slider consists of one piece each for the left and right sides.

2.The total working stroke of the slider is 160 mm, with 80 mm forward and 80 mm backward movement. The adjustment interval is 10 mm.

3.The sliding force of a single unloaded slide rail shall be ≤ 2.5 kgf.

4.Under a load of less than 50 N, the clearance of the slider shall meet the following:

(1) Left-right direction: ≤ 0.5 mm

(2) Up-down direction: ≤ 0.5 mm

5.Lubricating oil shall be applied in the ball movement area.

6.The welded surface shall be free from welding defects such as cracks, perforations, slag inclusion, undercut, burn-through, root penetration, localized sagging, and poor welding joints.

7.The assembly surface:E-coating.
